- ELEGOO Saturn 2 adopts a 10-inch 8K mono LCD screen with an HD resolution of 7680×4320 and an ultra-fine XY resolution of 28.5 microns, outputting outstandingly detailed 3D models with a cure time of only 1-3s per layer. The scratch-resistant tempered glass above the LCD screen with 9H hardness for better light transmission and protection.
- Larger Printing Volume: With a build volume of 219x123x250mm / 8.62×4.84×9.84 inch and a 10” large mono LCD screen make the prototype size larger and the curing efficiency higher, you can print one larger model or multiple smaller models in a single batch.
- Fresnel Collimating Light Source: Fresnel collimating light source consists of 64 highly integrated UV LED lights that work with FCL system Fresnel lens to emit a uniform light beam of 405nm wavelength with 92% light uniformity, excellent printing accuracy, and a more smooth surface finish.

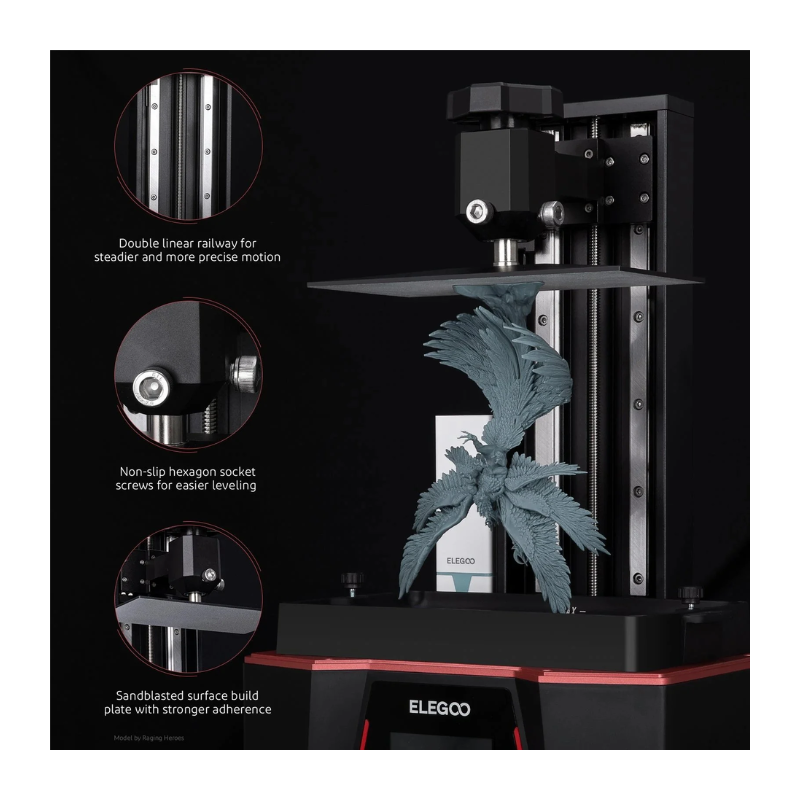

- Reliable Printing Performance: The Z-axis is designed with dual linear rails and non-slip hexagon socket leveling screws for ultra-steady & accurate movement and remarkable printing performance. The sandblasted surface build plate provides much stronger adherence, and PFA release liner with easier model removal and less release tension.
- Odor-free Printing Environment: The air filtration system with an activated carbon filter can absorb most of the resin odor, creating an odor-free fresh printing environment. Double heat-conducting copper heat tubes with faster heat transfer and better heat dissipation efficiency prolong the service life of 3D printers.
Technical Specification
- Operation: 3.5 inches touch screen
- Slicer Software: CHITUBOX
- Connectivity: USB
- Technology: MSLA
- Lightsource: UV LED 405nm
- XY Resolution: 7680*4320
- Z Axis Accuracy: 0.00125mm
- Layer Thickness: 0.01-0.2mm
- Printing Speed: 30-70mm/h
- Printer Dimensions: 305.9mm(L)*273mm(W)*567.3mm(H) – 12.04in(L)*10.75in(W)*22.33in(H)
- Build Volume: 218.88mm(L)*123.12mm(W)*250mm(H) – 8.62in(L)*4.85in(W)*9.84in(H)
